- Place of Origin: nantong
- Brand Name: zhongyi
- Model Number: M7475B
Specifications
Company
M7475B (parameter)
M7480B (parameter)
The largest diameter of the grinding workpiece
Mm
750.
800.
The maximum height of the grinding workpiece
Mm
Three hundred
Three hundred
Distance from grinding wheel end face to working table
Mm
Four hundred
Four hundred
The handwheel per turn head movement
Mm
Zero point five
Zero point five
Dial each case grinding head movement
/
Zero point zero one
Zero point zero one
Maximum feed rate of motor
Mm
Two point two
Two point two
Grinding wheel spindle speed
RPM
One thousand
One thousand
Cylindrical grinding wheel (outside diameter * diameter * width)
Mm
Phi Phi 380*150 450*
Phi Phi 380*150 450*
Working speed (Level 2)
RPM
13:20
13:20
Sliding saddle moving distance
Mm
Four hundred and fifty
Four hundred and fifty
Sliding saddle moving speed
M/min
Four point one eight
Four point one eight
Motor total power
KW
Thirty
Thirty
Grinding head motor
KW
Twenty-five
Twenty-five
Rotary electric motor
KW
2.2/3
2.2/3
weight
Kg
Six thousand
Six thousand and five hundred
The surface of the base of parallelism
Mm
1000:0.02
1000:0.02
Surface roughness
Mm
Ra1.25
Ra1.25

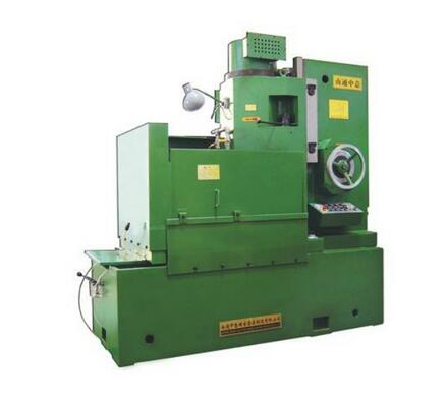

This series of vertical surface grinder grinding head, round electromagnetic worktable, using high efficiency plane grinding wheel face grinding workpiece surface. The grinding wheel spindle bearing adopts precise rolling bearing, good rigidity, high grinding efficiency. The vertical feed mechanism of the machine tool can be manually operated, and the use is convenient and reliable.
- Place of Origin: nantong
- Brand Name: zhongyi
- Model Number: M7475B
