- Place of Origin: nantong
- Brand Name: zhongyi
- Model Number: M7132/16
Specifications
Company
parameter
Working table size (width * length)
Mm
320*1600
Max. grinding size (width * length * height)
Mm
400*1600*400
Maximum longitudinal travel of the table
Mm
One thousand seven hundred and fifty
Table speed (Wu Ji)
M/mn
3-25
Table load capacity (including electromagnetic sucker)
Kg
Six hundred
Center of grinding wheel shaft to working table top distance (max.)
Mm
Six hundred
Cross stroke ofwheelhead (hand)
Mm
Three hundred and eighty
Horizontalgrinding intermittent feed stroke
Mm/
3-30
Shaft speed of grinding wheel
R/mm
One thousand four hundred and forty
Vertical feed wheel dial
Mm
Zero point zero one
Grinding wheel size (outside diameter * width)
Mm
Phi Phi 203*40 400*
Motor total power
KW
Twelve
Total power of motor
KW
Seven point five
The surface of the base of parallelism
Mm
300:0.005
Surface roughness
Um
Ra0.63
Machine tool net weight
Kg
Five thousand and one hundred
Exterior size (L * w * h)
Mm
4200*1690*2100

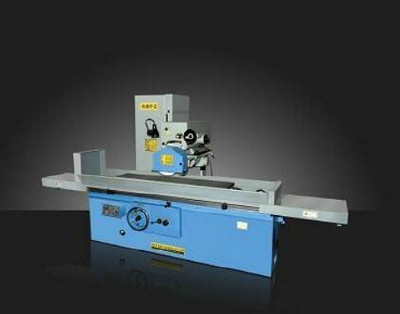

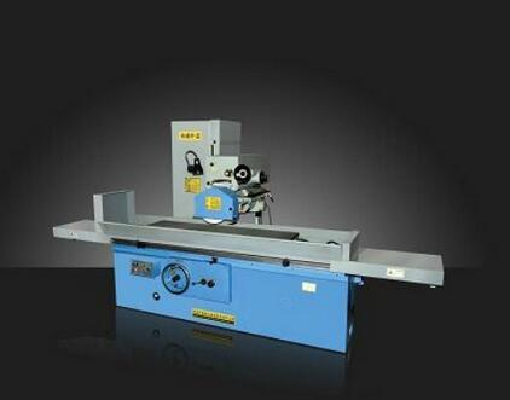

This series of surface grinder, grinding process is a plane for the equipment manufacturing and machinery manufacturing industry, steel castings and nonferrous metals and other parts of the.
